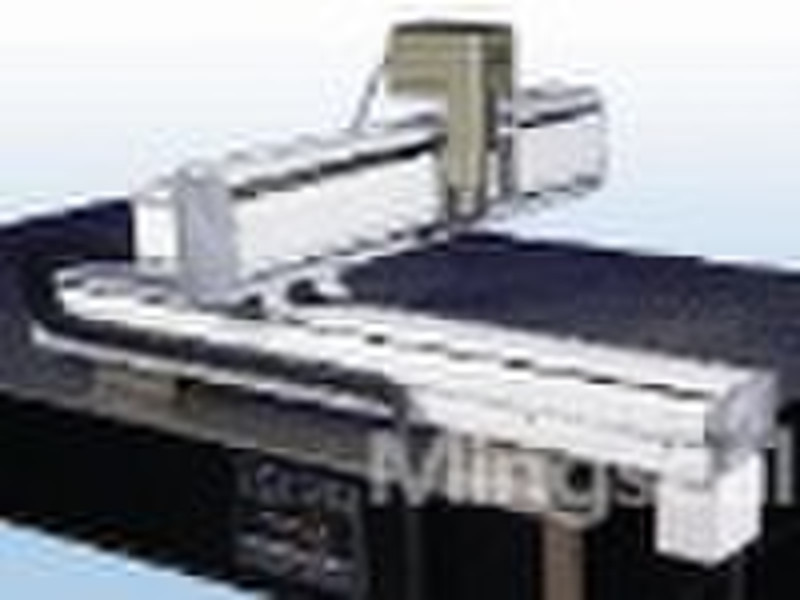

3 axis robot arm
lisa Lee
Contact person
Basic Information
| Place of Origin | Jiangsu China (Mainland) |
|---|---|
| Brand Name | Mingseal |
| Model Number | DX-570 |
1..X.Y.Z axes work together,can meet the need of 3D space complicated graphics glue-dispensing 2.Combine with assembly line conveyor belt,can fulfill automatic production line work; 3.Specially suit to the big size and inconvenient moving workpieces' glue dispensing . 4.X,Y axis can adopt stepper motor or servo-actuator controlling according customer's requirment,Z axis adopt precision stepper motor controlling; 5.Cantilever structure,can fix types of fixtures on the platform;also can meet different customers' requirment and develop types of fixtures which fix on the Z axis. Specification ItemDX-570Work AreaX500mmY700mmZ100mmMax SpeedX500mm/sY500mm/sZ 500mm/sRepeated Location Accuracy±0.01mmMax LoadingZ axis: 5Kg(running speed<100mm/s)Size(length,width,height)900mm*750mm*445mmWeight56 KgStored Assignment120pcsExternal CommunicationsRS232Power220V ±10% 50Hz±10%Temperature0 40°CRelative Humidity20% 90%(without dewdrop)
-
